Ultimate GeForce

The EVGA GeForce^® GTX 1080 Ti uses NVIDIA's new flagship gaming GPU, based on the NVIDIA Pascal™ architecture. The latest addition to the ultimate gaming platform, this card is packed with extreme gaming horsepower, next-gen 11 Gbps GDDR5X memory, and a massive 11 GB frame buffer. #GameReady

View Products

EVGA GeForce GTX 1080 Ti Founders Edition

About EVGA iCX Technology

Featuring a total of 11 global patents (pending and granted), iCX from EVGA is efficiency perfected. With 9 additional sensors embedded on the PCB, a newly designed die-cast baseplate and backplate, purposefully-directed airflow chambers, and full control using EVGA Precision XOC, EVGA's iCX is the very definition of Interactive Cooling.

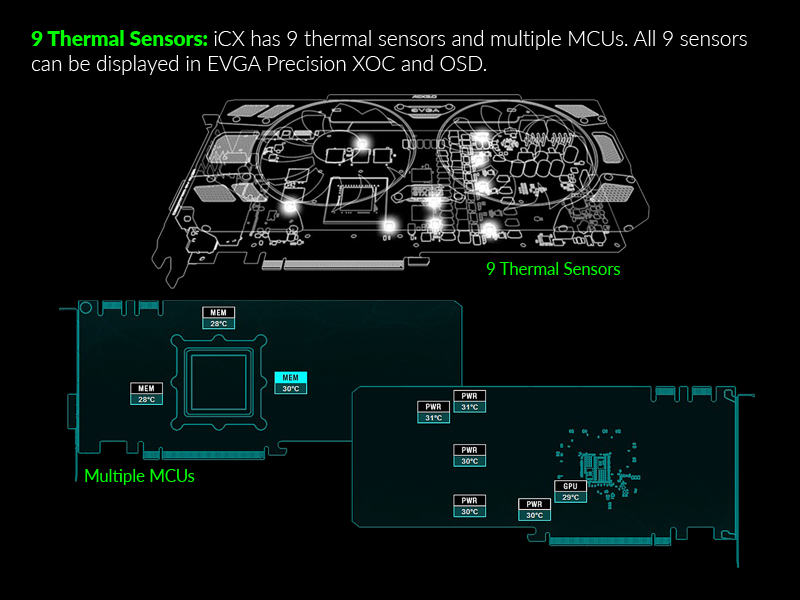

9 Thermal Sensors

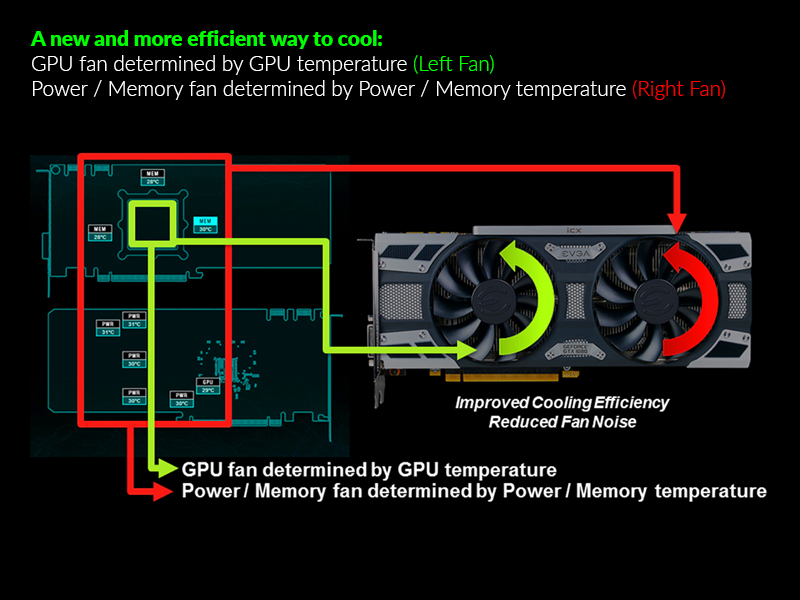

Async Fan Control

Efficient Cooling

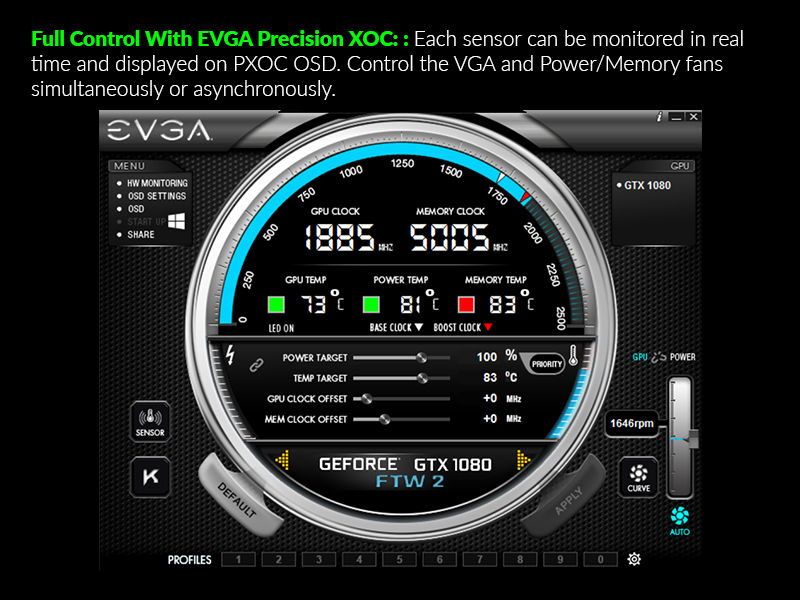

Full Control With
EVGA Precision XOC

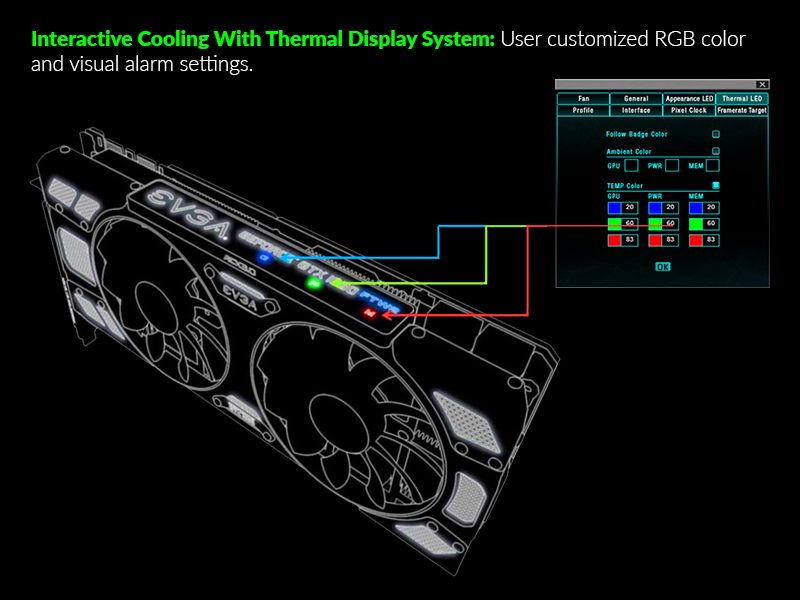

Interactive Cooling

Peace Of Mind Gaming

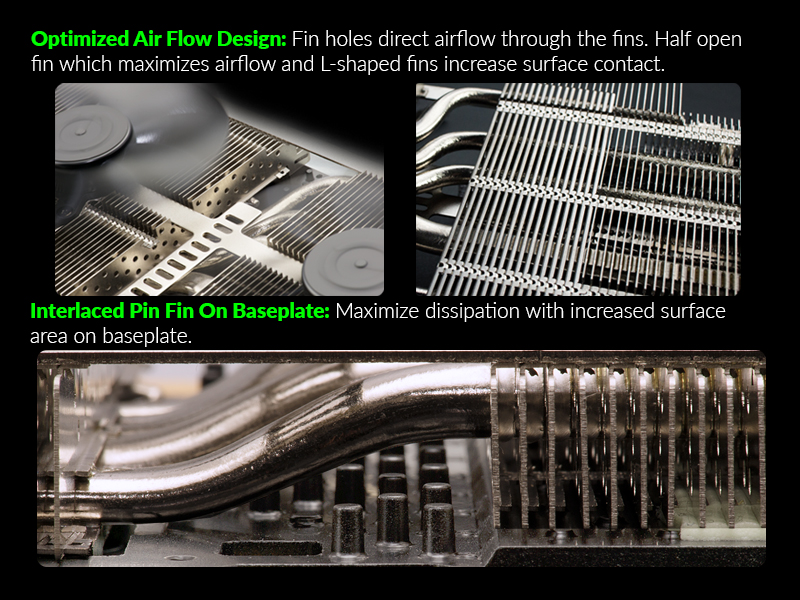

New Fin Design

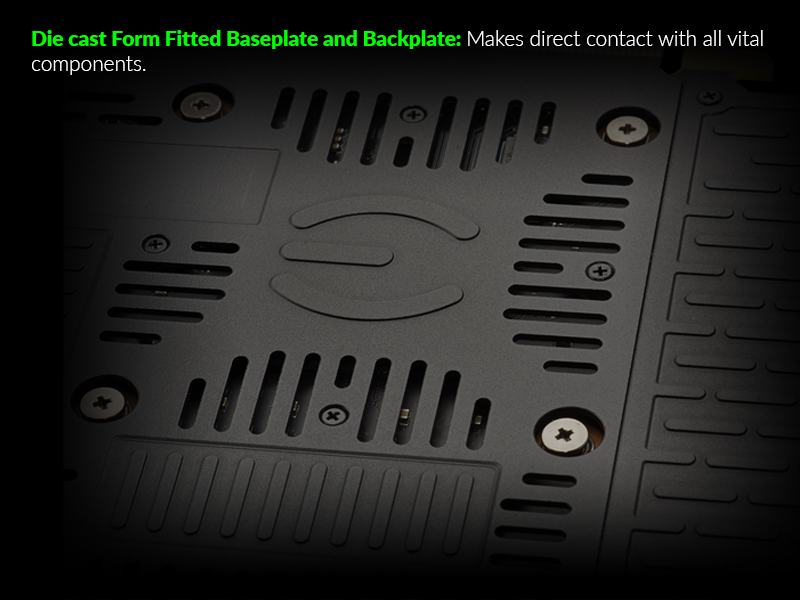

Form Fitted Baseplate

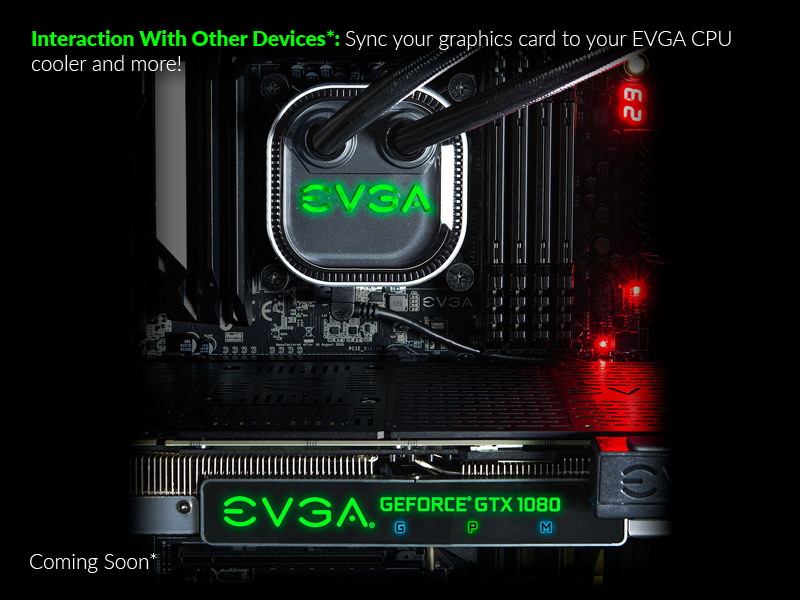

Sync With Other Devices

EVGA iCX

The patented EVGA iCX is comprised of two main components - EVGA iCX Cooling and EVGA iCX Technology. Select EVGA GeForce GTX 1080 Ti graphics cards are built using EVGA iCX Cooling, which delivers industry-leading cooling performance. To take full advantage of iCX Cooling, select EVGA GeForce GTX 1080 Ti graphics cards are built with iCX Technology to monitor temperatures and communicate dynamically with iCX Cooling to give you Peace of Mind Gaming.

EVGA iCX Cooling

EVGA iCX Cooling was built from the ground-up to reimagine how every area of a graphics card can improve cooling performance. iCX Cooling begins with a form-fitting die-cast baseplate and backplate, which touch all vital components and uses an interlaced pin fin design to remove more heat from components. The aerodynamically-designed heatsink contacts the baseplate in multiple areas, using a series of pin holes and half-open fins to direct air over the graphics card. EVGA GTX 1080 Ti graphics cards with iCX Cooling include a safety fuse to protect your card and system. iCX Cooling can be further controlled by using EVGA Precision XOC.

EVGA iCX Technology

EVGA iCX Technology takes iCX Cooling to a new level. iCX Technology incorporates 9 additional thermal sensors on the graphics card PCB, which monitor the GPU, the Power, and Memory areas of the graphics card. The iCX Technology monitoring is used to dynamically direct the fans asynchronously to allow iCX Cooling to increase airflow wherever it's needed most. iCX Technology further includes a safety fuse to protect your card and system. EVGA iCX Technology can be further monitored and controlled through EVGA Precision XOC to truly give you Peace of Mind Gaming!

	iCX Technology		iCX Cooling
EVGA GTX 1080 Ti Models	FTW3	SC2	SC Black Edition
Part Numbers	11G-P4-6696	11G-P4-6593	11G-P4-6393
iCX Features
iCX Technology
iCX Cooling
RGB LED G/P/M
Cooler LED	RGB	RGB	White
Fan #	3	2	2
Asynchronous Fans

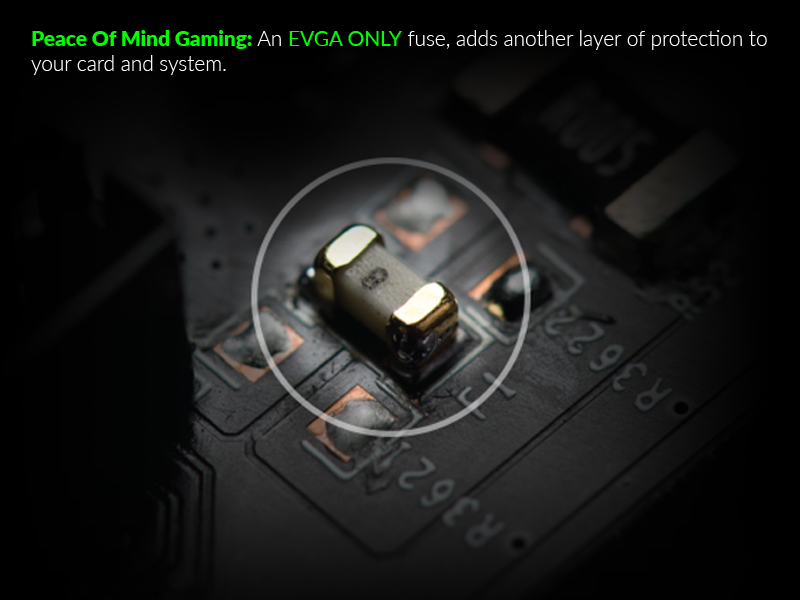

Safety Fuse
# of BIOSes	2	1	1
Phase Design	10+2	7+2	7+2
PCI-E Power Connectors	8+8	6+8	6+8
Display Outputs	3xDP, HDMI, DVI-D (physical)	3xDP, HDMI, DVI-D (physical)	3xDP, HDMI, DVI-D (physical)
