EVGA SuperNOVA 650 GS and 550 GS
Silence Is Golden
Introducing the EVGA SuperNOVA 650 GS and 550 GS power supplies. These power supplies take the award-winning features of the new EVGA "GS" lineup and provide them at an extremely affordable price. The EVGA SuperNOVA 650 and 550 GS power supplies offer superior performance, Gold-rated efficiency and are completely silent when under low loads*. Backed by a 5 year warranty and high quality Japanese capacitors, these power supplies are the right choice for excellent efficiency, low noise levels and incredible value.

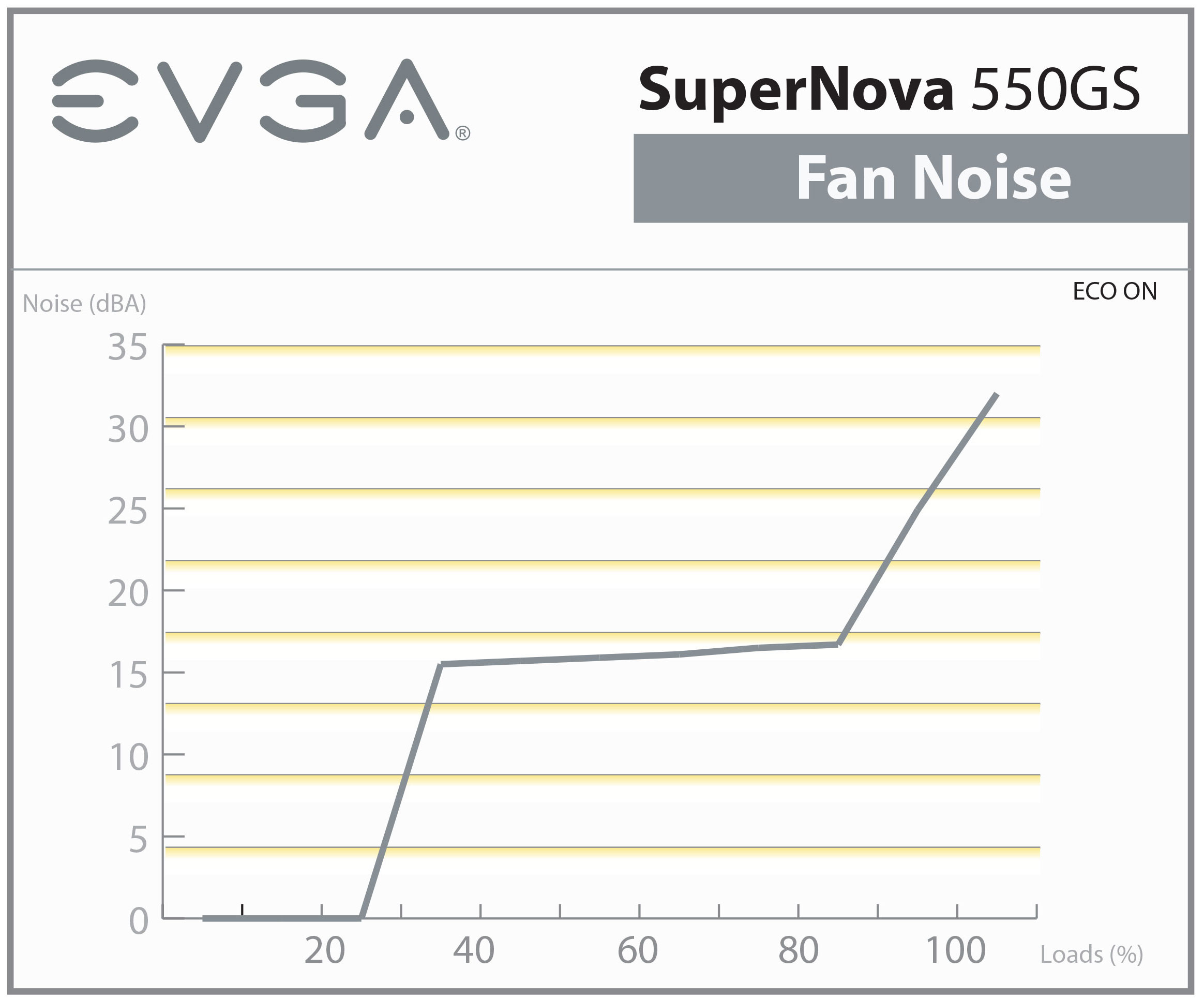

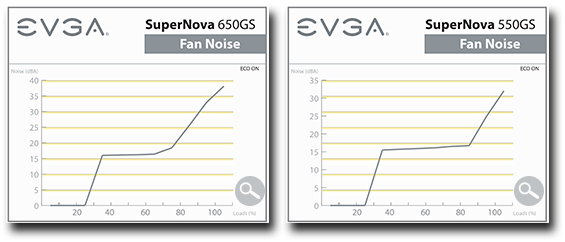

*With ECO mode
Features
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- Highest quality Japanese brand capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- NVIDIA SLI & AMD Crossfire Ready
- 5 Year Warranty and unparalleled EVGA Customer Support
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
| AC Input | 100 - 240 VAC, 12-6A, 50 - 60 Hz | ||||
| DC Output | +3.3V | +5V | +12V | +5Vsb | -12V |
| MAX Output | 20A | 20A | 54A | 2.5A | 0.3A |
| 648W | |||||
| Combined | 100W | 648W | 12.5W | 3.6W | |
| Output Power | 650W @ +50C | ||||
Features
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- Highest quality Japanese brand capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- NVIDIA SLI & AMD Crossfire Ready
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
- 5 Year Warranty and unparalleled EVGA Customer Support
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
| AC Input | 100 - 240 VAC, 12-6A, 50 - 60 Hz | ||||
| DC Output | +3.3V | +5V | +12V | +5Vsb | -12V |
| MAX Output | 20A | 20A | 45A | 2.5A | 0.3A |
| 540W | |||||
| Combined | 100W | 540W | 12.5W | 3.6W | |
| Output Power | 550W @ +50C | ||||
100% Modular Design
FULL modularity enables you to use only the cables you need, helping to improve case airflow, eliminate unnecessary wires, and best of all, reduce cable clutter.
Features
Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA SuperNOVA 650 GS/550 GS provide up to 54A / 45A respectively on a single rail!
LLC Resonant Circuit Layout
Full DC to DC, LLC resonant circuit design improves efficiency.
Fully Modular
Fully modular design allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximize case airflow.
NVIDIA SLI Ready
Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 650 GS / 550 GS give you the power you need to drive these demanding systems and achieve the best overclocks.
Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors
Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.
Teflon Nano-Steel Bearing
High quality Teflon Nano-Steel bearing ensures long life and nearly silent operation.
Gold Rated Efficiency
80 Plus certification ensures your power supply isn’t wasting power and turning it into excess heat. Under typical load this power supply is 92% efficient or higher.
